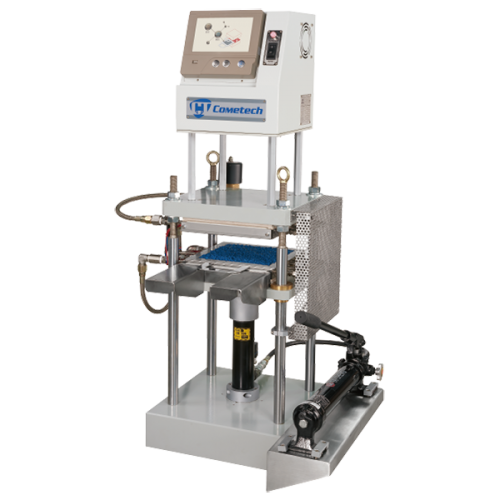

QC-677A
RUBBER & PLASTIC
Hubungi kami untuk pemesanan dan informasi lainnya
QC-677A
Spesifikasi
| Pressure(Tons) | 10, 20, 30, 50 (Tons), or specified capacity | |
| Units | Temperature: ℃, ℉ Area: m², cm², mm², ft², in² Force : kgf, gf, tonf(long), tonf(short),lbf, ozf, kN, N, tonf(SI) Pressure: bar, kgf/cm², KPa, MPa, mm-Aq(4℃), psi |
|
| Temperature | Room temperature ~ 300℃ | |
| Heating time | 50℃→150℃ take 18mins | |
| Cooling method (optional): |
A. water cooling system, 150°C→60°C take 10 mins (Depends on the size of the heating-plate) B. External water chiller, average cooling speed 15°C/min |
|
| Size of heating- plate |
10, 20 Tons: 25x25cm(standard) |
30, 50 Tons: 30×30 cm |
| Distance between heating plates |
60~100mm ( adjustable) | |
| Piston stroke | Max. 80mm | |
| Accessory | A set of mold for flat sheet size 200x200x2mm |
|
| Control | 7″ touch screen | |
| Display | Instant force, temperature and diagram | |
| Power | Single phase, 220V/50Hz or 60Hz | |
