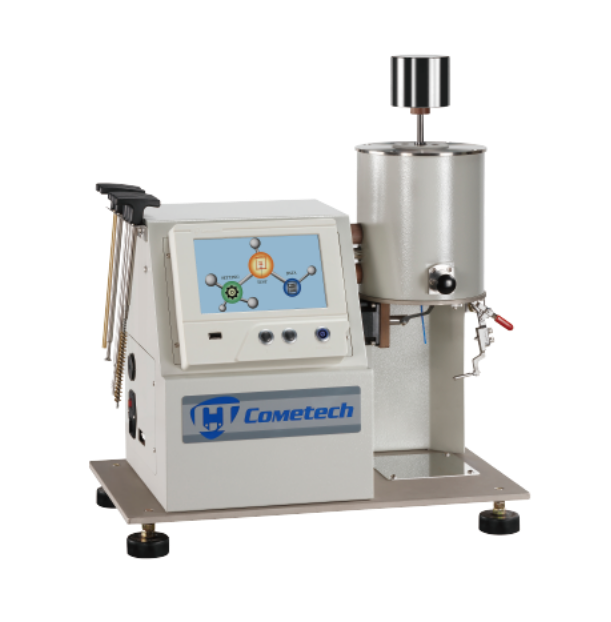

QC-652S
RUBBER & PLASTIC
Hubungi kami untuk pemesanan dan informasi lainnya
QC-652S
Spesifikasi
| Temperature Option | B Type：50~320℃ C Type：50~400℃ |
|
| Test Temperature, T | Maximum allowable deviation from required test temperature | |
| At (10±1) mm above the top surface of the standard die | From (10±1) mm to (70±1) mm above the top surface of the standard die | |
| 125 ≦ T ＜250 | ±0.2℃ | ±2℃ |
| 250 ≦T＜300 | ±0.5℃ | ±2.5℃ |
| 300 ≦T | ±1℃ | ±3℃ |
| Counter accuracy | ±0.01s | |
| Piston push rod weight | 100g | |
| Automatic cut | Interval time 1-300 seconds can be set | |
| Heater size | 9.55±0.01mm | |
| Hole mold | 2.095±0.005mm | |
| Counter weight | Stainless steel 1100g, 2060g、3700g、4900g、9900g、12400g、19900g、21500g (Optional) (rod weight 100g) |
|
| Accessories | Cleaning brush、measuring cups、funnel and Die calibrationplug gauge | |
| Weight | 40Kg(machine weight) | |
| Dimension | 47x38x48cm (47x38x60 with MVR part) | |
| Optional | 1. Material block mechanism for high MI value. 2. MVR mechanism (for B method) (the machine has built-in A and B method mode, the above items can be installed by user.) 3. Corrosion-resistant heated barrel is optional. |
|
| Power | 220 V Single phase 50 Hz/60Hz, 7A | |
*Cometech reserves ultimate modification right of product specification.
