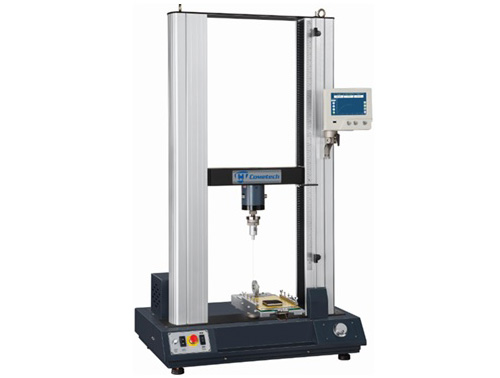

Model

QC-506M2F

QC-506M2F extended

Max. Capacity

20kN

Units

Force: gf, kgf, lbf, N, kN, ozf, tonf(SI), ton(long), tonf(short)

Pressure: Kpa, Mpa, psi, bar, mm-Aq, mm-Hg

Force Resolution

1/100,000 (31 bits)

Load cell accuracy

±1% under the range 2-100% of the load cell capacity
(There are optional load cells with higher accuracy)

Test stroke(w/o grip)

800mm

1200mm

Stroke resolution

0.0001 mm

Space between columns

425 mm (550mm, 680mm, 800mm optional)

Speed accuracy

±1%

Speed range

High speed mode

0.05 ~ 830 mm/min

Low speed mode

0.0002~3 mm/min

PC-Port

RJ45(TCP/IP)(Connect software optional)

Data sampling rate

1200Hz (Max.)

Hardware safety protection

upper limit, lower limit, emergency stop button

Motor type

Servo Motor

Frame Stiffness

1585kgf/mm

Feature

※Automatic reading of load cell feature information
※Automatic reading ofdisplacement sensor feature information
※force display, displacement display, time display, stress display and strain display
※External analog input (2-channel simultaneous reading of voltage or current)
※Test force automatically zero
※Test force self-defined calibration
※Break detection
※Automatic return
※Force overload protection

Power Supply

Single phase 200V-240 V, 5A

Dimension of Machine

91 x 58 x 148 cm

95 x 58 x 190 cm

Weight of Machine

145kgf

170kgf
