Model

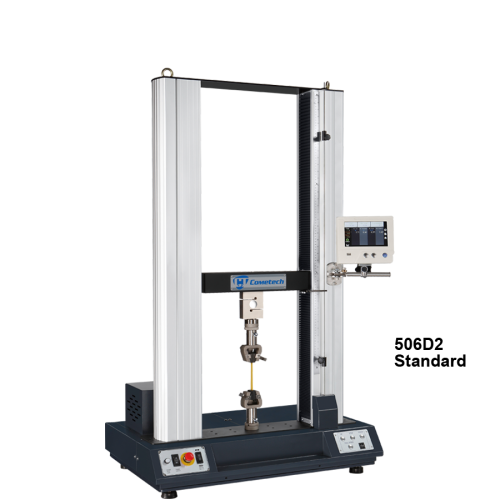

Standard – QC-506D2

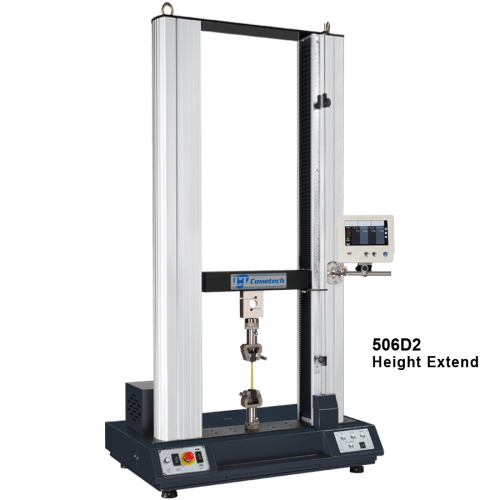

Height Extend – QC-506D2

Capacity

20 kN

Load cell resolution

1/10,000 (23 bits)

Load cell accuracy

±1% under the range 2-100% of the load cell capacity
(There are optional load cells with higher accuracy)

Test stroke

800 mm

1200 mm

Displacement resolution

0.001 mm

Cantilever distance

425mm (550mm, 680mm, 800mm optional)

Speed Range

25~650mm/min (digital type setting)

Min speed

25mm/min at 1000kg
45mm/min at 2000kg

Connect to PC through

TCP/IP port with software cable provide upon purchase

Data sampling rate

 Max 400Hz

Hardware protection

 Upper and lower limit switches and emergency stop button

Power source

DC motor

Frame Stiffness

37 kN/mm

Feature

※Plug and play interface accessories for quick installation.
※Signal I/O and test space is preserved for expansion if needed in future.

Power Supply

110 / 220VAC，5A

Dimension

86 × 60 × 150 cm

84 x 60 x 195 cm

Weight

145 kg

190 kg
