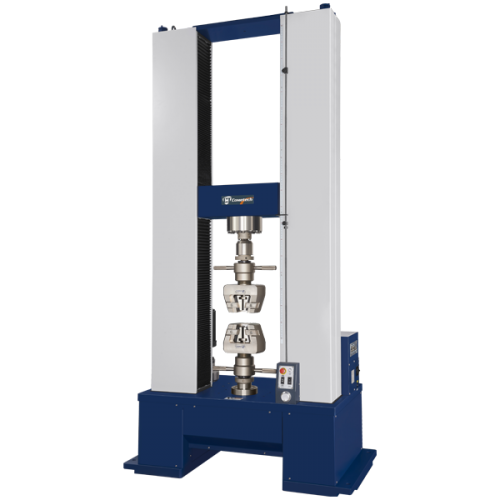

Model

501M2F

502M2F

503M2F

Max. Capacity

300 kN

200 kN

100 kN

Units

Force: gf, kgf, lbf, N, kN, ozf, tonf(SI), ton(long), tonf(short)
Pressure: Kpa, Mpa, psi, bar, mm-Aq, mm-Hg

Force Resolution

1/100,000 (31 bits)

Load cell accuracy

±1% under the range 2-100% of the load cell capacity
(There are optional load cells with higher accuracy)

Test stroke(w/o grip)

1100 mm

Stroke resolution

0.0001 mm

Space between columns

550 mm(680mm,800mm optional)

Speed range

0.0001 ~ 330 mm/min

0.0001~375 mm/min

Speed precision

High speed mode

0.02 ~ 330 mm/min

0.2 ~ 375 mm/min

Low speed mode

0.0001 ~ 1 mm/min

0.0001 ~ 2 mm/min

PC-Port

RJ45(TCP/IP)(Connect software optional)

Data sampling rate

1200Hz (Max.)

Hardware safety protection

upper limit, lower limit, emergency stop button

Motor type

Servo motor

Frame Stiffness

562 kN/mm

171 kN/mm

Feature

※Automatic reading of load cell feature information
※Automatic reading ofdisplacement sensor feature information
※force display, displacement display, time display, stress display and strain display
※External analog input (2-channel simultaneous reading of voltage or current)
※Test force automatically zero
※Test force self-defined calibration
※Break detection
※Automatic return
※Force overload protection

Power Supply

3 phase200~240 VAC，30 A

3phase200~240 VAC，20 A

Signal phase 200~240 VAC, 10 A

Dimension of Machine

145x66x235cm

135x60x220cm

Weight of Machine

1250 kg

1250 kg

800 kg
