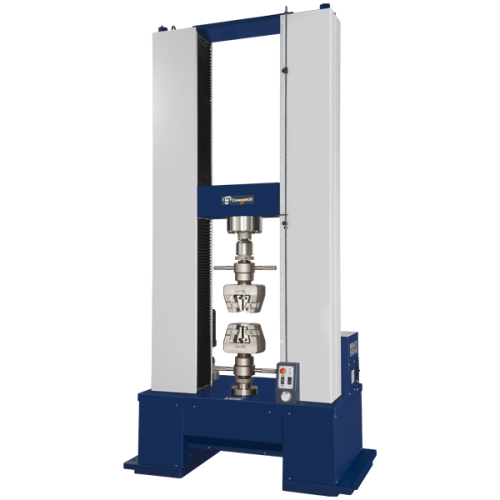

Model

QC-501M1F

QC-502M1F

QC-503M1F

Max. capacity

300 kN

200 kN

100 kN

Units

Force: gf, kgf, lbf, N, kN, ozf, tonf(SI), ton(long), tonf(short)
Pressure: Kpa, Mpa, psi, bar, mm-Aq, mm-Hg

Force Resolution

1/100,000 (31 bits)

Load cell accuracy

±1% under the range 2-100% of the load cell capacity
(There are optional load cells with higher accuracy)

Test Stroke (w/o grip)

1100 mm

Stroke resolution

0.0001 mm

Space between columns

550 mm(680mm, 800mm Optional)

Speed range

0.2~330 mm/min (Can be set by computer software )

0.2~375 mm/min (Can be set by computer software)

 Speed accuracy

±1%

PC-Port

RJ45(TCP/IP)[Software optional]

Data sampling rate

Maz.400Hz

Motor type

Servo Motor

 Frame Stiffness

562 kN/mm

171 kN/mm

Feature

※Automatic reading of load cell feature information
※Automatic reading of displacement sensor feature information
※force display, displacement display, time display, stress display and strain display
※External analog input (2-channel simultaneous reading of voltage or current)
※Test force automatically zero
※Test force self-defined calibration
※Break detection
※Automatic return
※Force overload protection

Power Supply

3 phase 200~240VAC，30 A

3 phase 200~240VAC，20 A

Single phase 200~240 VAC, 10 A

Dimension of Machine

140 x 66 x 235cm

120 x 60 x 220cm

Dimension of Machine

1250 kg

800 kg
