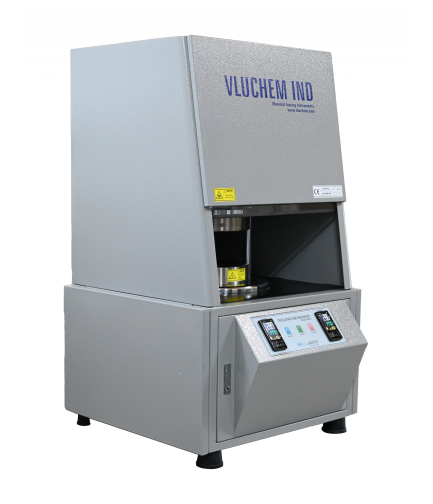

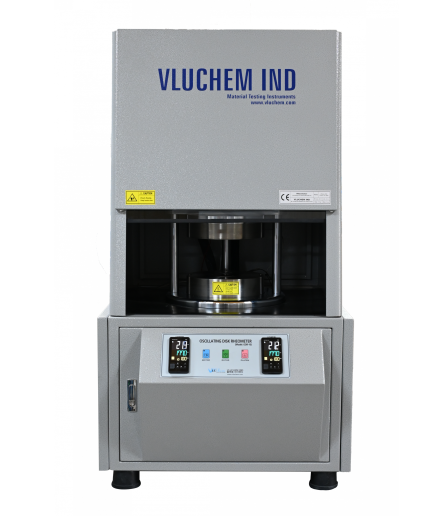

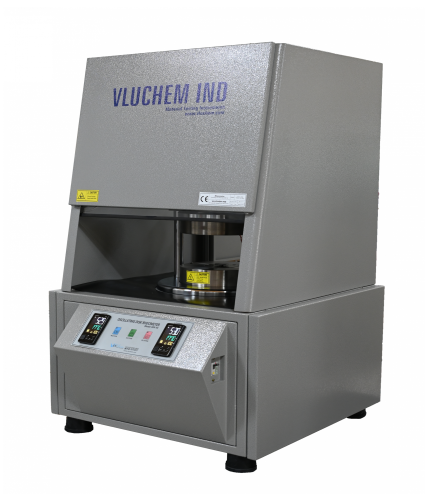

Model

ODR-10

International Standard

ASTM D 2084 ISO 3417 and  KS M 6687

Motor

Induction Motor

Rotor

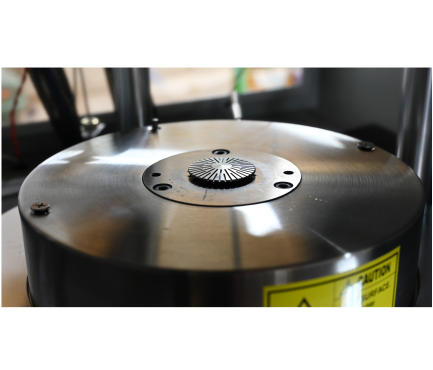

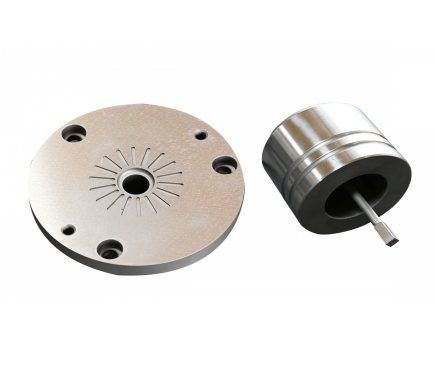

Biconical Disk

Oscillation frequency

1.67Hz

Oscillation angle

1°, 3°, 5° Mechanically adjustable

Protection for operator
Temp. shield screen moving

Before test chamber closing

Test chamber moving

By Pneumatic

 Rotor Motor Platen  operation

available by hardware
& software

Temperature control

available by hardware &
software

Temperature range

microprocessor controlled
RT ~ 220°C

Temp. Sensor Type

PT 100 Ω

Torque range

0~ 200 dNm

Calibration

Calibration jig

Torque [dNm, lbf.in] Temperature [°C]

MH, ML Ts1, Ts2, Tc10(N), Tc50(N), Tc90(N)

Automatic test results pass/fail function

 Trend graphs

Tolerance limits by time and torque

Data excel export function, Average, S-Dev

ERP system upload – option
