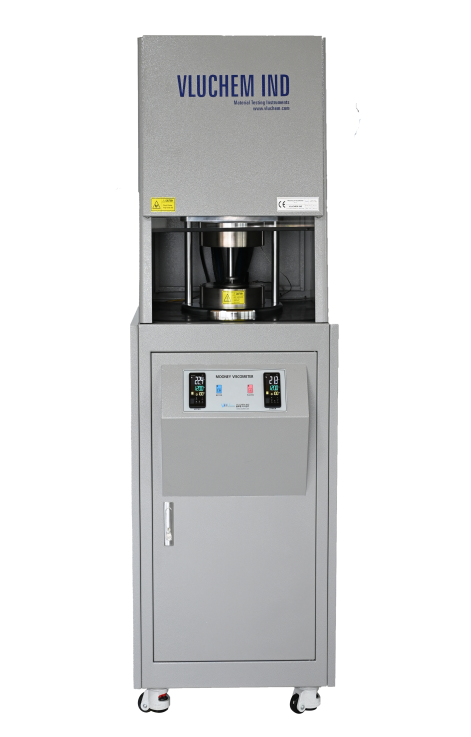

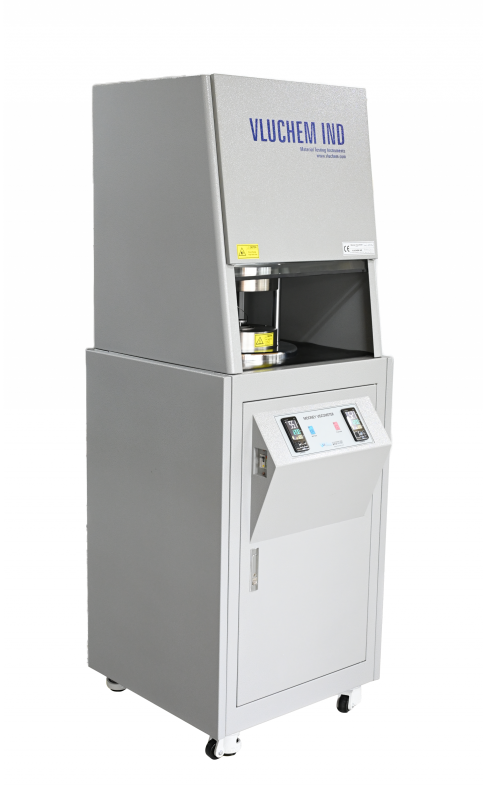

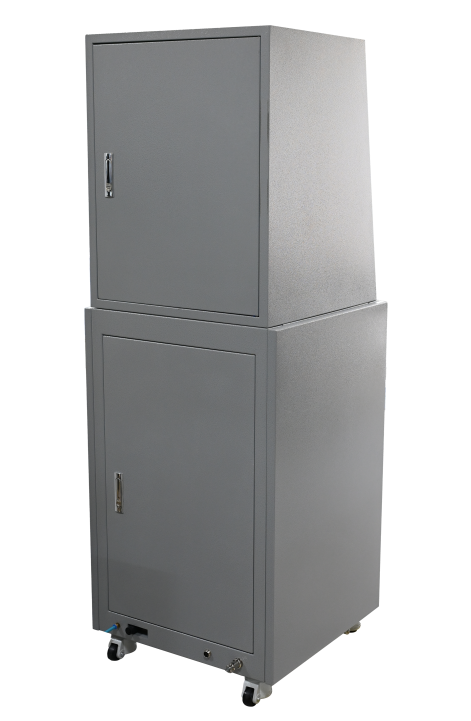

Model

MV-10

International Standard

ASTM D 1646

ISO 289

KS M ISO 289-1, 2 and 4.

Motor

Induction Motor

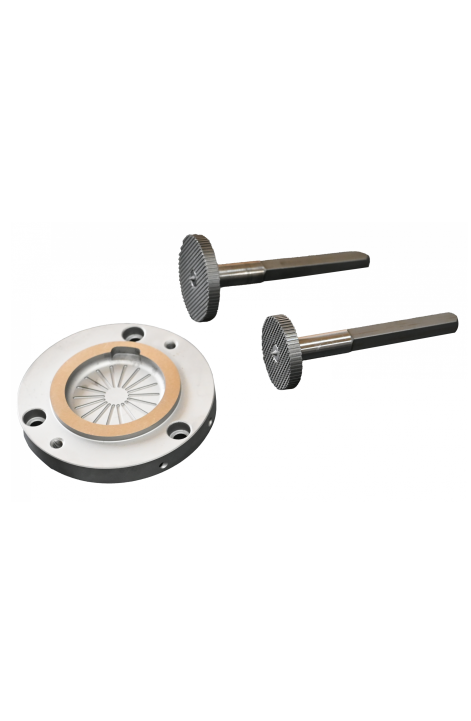

Rotor

Disk-shaped rotor
Large and small

Rotor Speed

2 rpm

Protection for operator
Temp. shield screen moving

Before test chamber closing

Test chamber moving

By Pneumatic

Motor Platen operation

available by hardware
& software

Temperature control

available by hardware &
software

Temperature range

microprocessor controlled
RT ~ 220°C

Temp. Sensor Type

PT 100 Ω

Torque range

0~ 200 MU

Test modes

viscosity

scorch

stress relaxation

Stop T5 and T3 mode

Calibration

Weight and software

Data

Initial viscosity, ML[S]1+4[N]

Scorch viscosity and cure times

T5(3), T35(18) and T30(15), Tmin

[Multi] Stress relaxation

Data files convert to excel files. 

Trend graphs

Tolerance limits box by time and torque

Average, S-Dev, ERP system upload

Pneumatics

min 4.5 bar/60 Psi

Electrical

200~230V, 3A, single phase

Emergency Button

Dimension

W615 X D685 X H1643 mm

Weight 

125 kgs
